|Type:||13/3,28/4,59/5,40/3,18/3,8/3,6/2||Installation:||Aluminum keel, wood frame|
|Thickness:||12 / 15 / 18 mm||Material:||MDF,solid wood|
|Size:||2440*133,2440*197 mm||Product name:||Soundproof wall panel|
|Finish:||Melamine, Natural Wood Veneer||Application:||Theater,cinema|
1.Confirm the place of installation ,determine the horizontal and vertical lines and the reserved measurements for the electric wire socket ,pipes.etc.
2.Calculate the actual construction measurements and cut the part of acoustic panels if needed.
3.Start to install and follow the rules:from left to right,from bottom too top.for horizontally installation.make the grooves up;for the vertical installation,make the tougues on the right.for real wood veneer acoustic panels that have requirements on the direction of the stripes,the panels should be installed according to the pre-marked sequence numbers.
(1)Super sound absorbing.
Selection of high quality raw materials,high rate of sound-absorption, idea acoustic absorption material.
Non toxic and tasteless clean off dust,is idea for indoor environmental sound audio reflected acoustic material.
The shell material is made of fireproof Fabrics or Artificial Leather,variety of colors,beautiful appearance,material toughness,soft,can be used directly to the skin,economic benefits.
|Wooden Grooved Acoustic Panel|
|1.Structure||Basic Material ,Finish&Back Finish|
|2.Basic Material||E1 MDF,FR MDF ,MgO Combination Board etc.|
|2. Front Finish||Melamine ,Natural Wood Veneer,Paint,etc.|
|3. Back Finish||Black Acoustic Felt|
|4.Standard Size||2440*133 , 2440*197mm,etc.|
|6. Standard Pattern||13-3,14-2,28-4,59-5,etc.|
|7. Installation||1.Lightweight steel keel system2.Wooden battern systern|
|8. Fire rate||can meet China Standard Class B1 and BS476 Part 7 Class 1|
|9. Eco level||can meet China and EU Standard Class E1|
|10.Applications||gymnasium,hotels,exhibition centers,schools,studio etc.|
|11.Is customized||can be Customized|

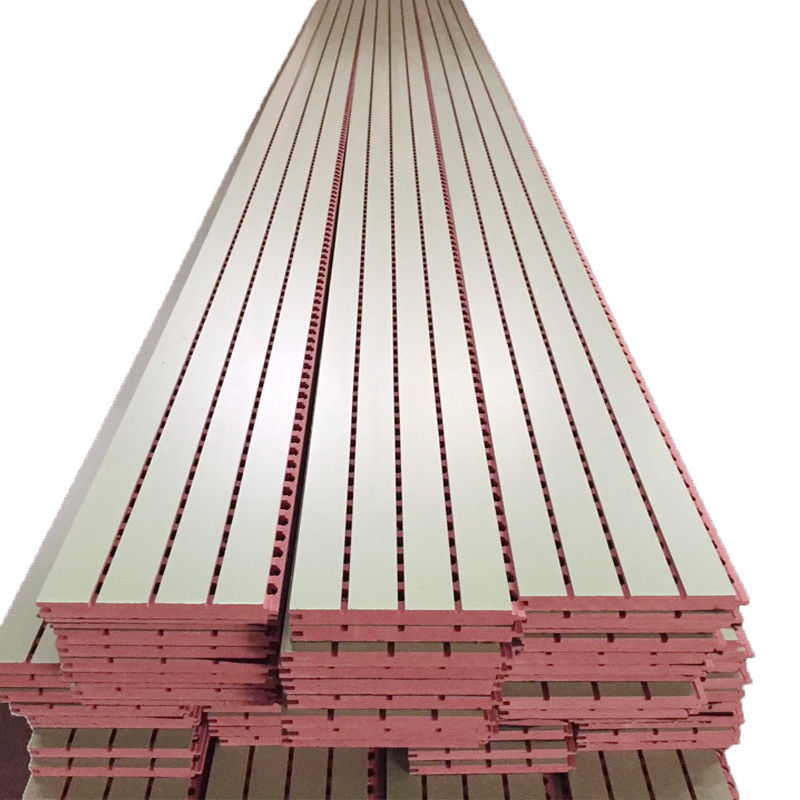

Wooden grooved acoustic panels use the integration of custom design with the latest acoustics technology . State of the art machinery produces the huge variety of grooves, slots, holes and patterns that are distinctively . The core material is composed of MDF—fire retardant, low formaldehyde (E1 grade), FSC Certified if required. The panels have the distinctive "non see through" black Sound acoustic felt attached to the back.
(1)Our grooved slotted board’s highest fire retardant grade can reach A2(GB) grade, and the best environmental protection can reach E1(GB) grade.
(2)Soundproof wall panel structures’ finish including: Melamine, Natural veneer, Anti-fire plate, Paint,Metal sheet, Artificial veneer and leather etc.
(3)Acoustic tissue including: The black color and attached at the back side of acoustic panel tissue, has fire retardant and sound absorption function.
Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials.The panels move on a ceiling track with no requirement of floor guides or rails,and they have a standard thickness of 65 mm,80 mm and 100 mm,and a width up to 1230 mm.Maximum height can reach 13meter tall.
